Industrial Bucket Elevator System

What is an Industrial Bucket Elevator System?

An Industrial Bucket Elevator System is an automated elevator for the vertical continuous conveying of bulk materials. It can stably lift powdery, granular, small lump, and some abrasive materials from a low position to a designated height, achieving efficient connection between different processes in the production line. The lifting height ranges from 3 to 50 meters, and the conveying capacity can be customized according to working conditions, with a maximum of over 800 m³/h. Compared to traditional manual lifting or ordinary conveying equipment, the Industrial Bucket Elevator System has advantages such as large conveying capacity, high lifting height, small footprint, stable operation, good sealing performance, and low maintenance costs. It can meet the needs of modern industrial continuous and automated production, while effectively reducing labor costs and improving overall production efficiency.

Why Choose an Industrial Bucket Elevator System?

With the continuous improvement of industrial automation, more and more companies are choosing Industrial Bucket Elevator Systems as an important conveying equipment for their production lines. This system can achieve continuous and uninterrupted operation, ensuring a large conveying capacity while occupying a small area, making full use of factory space. The fully enclosed structure effectively reduces dust leakage and improves the production environment, making it particularly suitable for industries with high environmental protection requirements. It can be integrated with screw conveyors, belt conveyors, vibrating feeders, and other equipment to form a complete conveying system. The equipment adopts a modular design, which not only facilitates installation but also simplifies maintenance. The drive method, hopper type, and control system can be flexibly configured according to material characteristics and production needs, providing enterprises with a more stable, efficient, and energy-saving conveying solution.

How does the Industrial Bucket Elevator System work?

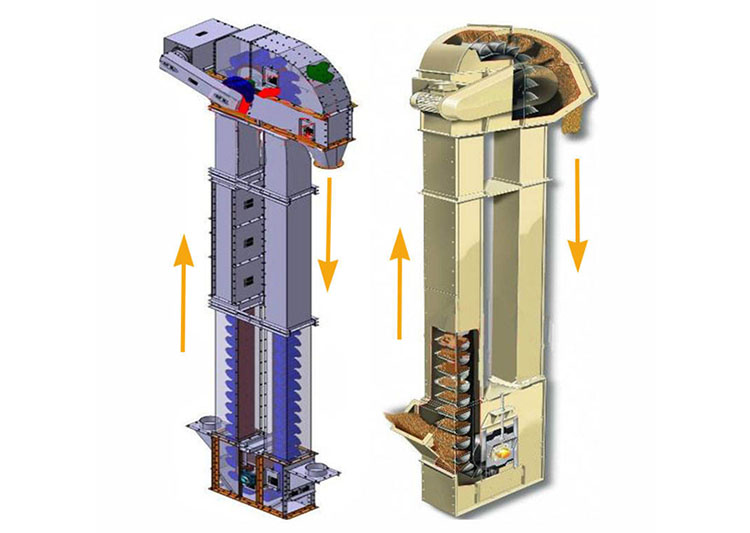

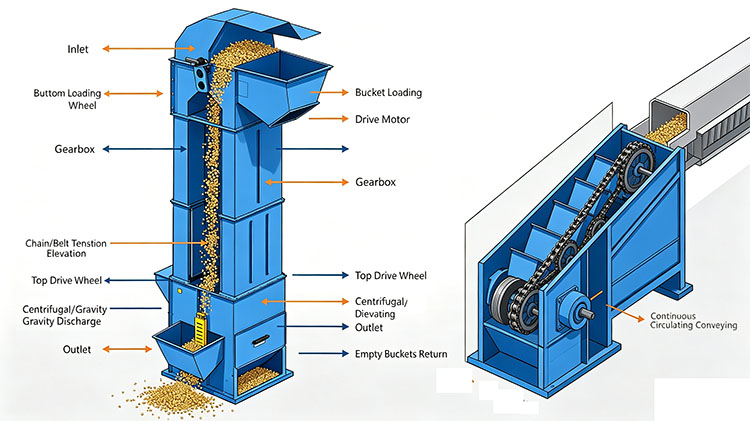

The Industrial Bucket Elevator System primarily relies on a drive motor to drive a reducer, causing the hoppers mounted on chains or lifting belts to circulate along the enclosed casing. Material enters the hopper through the bottom inlet and is lifted upwards. When it reaches the top, it is evenly unloaded under centrifugal force or gravity and enters the next production process through the outlet. The empty hopper then returns to the bottom to be reloaded, achieving continuous cyclic conveying. The entire conveying process is stable and reliable, effectively reducing material breakage while maintaining high conveying efficiency, making it particularly suitable for long-term continuous production.

What are the structural components of an Industrial Bucket Elevator System?

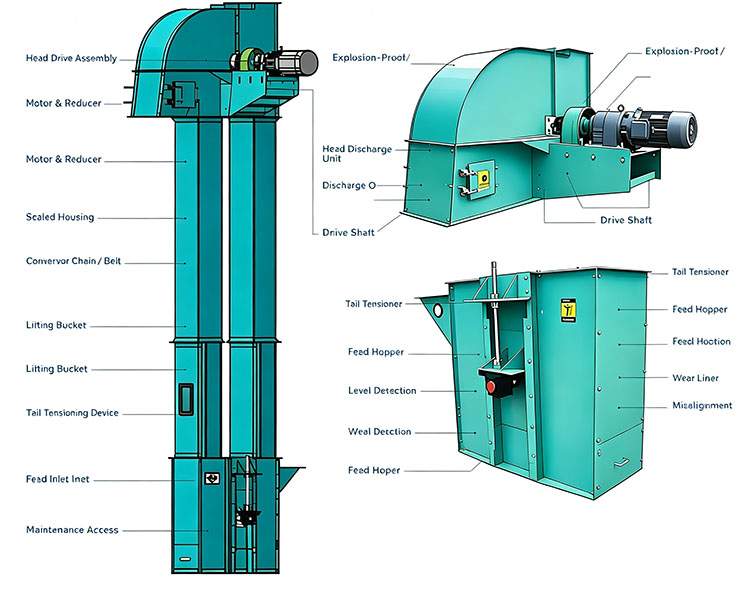

A complete Industrial Bucket Elevator System mainly consists of core components such as a drive unit, lifting buckets, conveyor chains or belts, a head unloading device, a tail tensioning device, a sealed housing, and an electrical control system. The drive unit uses an electric motor with a reducer, and can be equipped with ordinary, explosion-proof, or variable frequency motors depending on the working conditions, providing stable power. The buckets are made of plastic, carbon steel, stainless steel, or wear-resistant materials, depending on the material characteristics, and are available in deep or shallow bucket designs to adapt to different conveying needs. The chain or belt section also offers a variety of options, including rubber lifting belts, wire rope lifting belts, plate chains, and high-strength ring chains, to adapt to various working conditions. During operation, the head unloading device efficiently unloads material and reduces residue using centrifugal or gravity methods, while the tail tensioning device continuously maintains stable tension on the belt or chain, ensuring smooth operation of the entire machine. The fully enclosed steel structure of the sealed housing effectively prevents dust leakage and significantly reduces operating noise. In addition, the electrical control system supports PLC automatic control, frequency conversion speed regulation, remote monitoring, fault alarms, and interlocking protection functions, thereby realizing intelligent operation and safety management of the entire system.

What types of Industrial Bucket Elevator Systems are available?

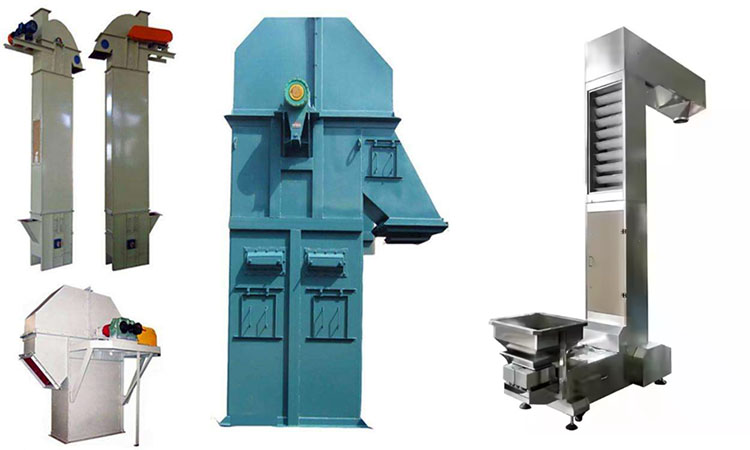

To adapt to different material characteristics and complex production conditions, Industrial Bucket Elevator Systems can be designed in various structures, including belt bucket elevators, chain bucket elevators, NE plate chain bucket elevators, TH ring chain bucket elevators, TB plate chain bucket elevators, and Z-type bucket elevators, comprehensively covering the conveying needs from lightweight powders to heavy-duty lumpy materials. Belt-type structures offer high linear speeds and stable operating performance, suitable for continuous high-speed lifting of powdery, granular, and small-diameter materials; chain-type structures use high-strength alloy chains and wear-resistant buckets, capable of withstanding high temperatures, strong wear, and the impact of large materials, significantly enhancing the equipment's load-bearing capacity and extending its service life, making them the preferred choice for heavy-duty operations in metallurgy, building materials, and mining. Z-type bucket elevators, with their unique horizontal-vertical-horizontal conveying path, demonstrate excellent adaptability in scenarios with limited space or requiring multi-point unloading. Different types can be customized to meet specific lifting height, conveying capacity, and material characteristics, providing customers with more precise conveying solutions.

Industrial Bucket Elevator System Technical Specifications

Model	Max Feed Size     (mm)	Capacity (Ton/Hour)	Lifting Speed  (m/s)	Belt Width (mm)	Lifting Height (m)
TD160	25	5.4-16	1.4	200	<40
TD250	35	12-35	1.6	300	<40
TD315	45	17-40	1.6	400	<40
TD400	55	24-66	1.8	500	<40
TD500	60	38-92	1.8	600	<40
TD630	70	85-142	2	700	<40

What are the advantages of an Industrial Bucket Elevator System?

The Industrial Bucket Elevator System utilizes mature vertical conveying technology, enabling high conveying capacity, high lifting height, and continuous stable operation, effectively reducing energy consumption while ensuring conveying efficiency. The fully enclosed structure design reduces dust leakage and material waste, improves the production environment, and lowers equipment maintenance frequency. Modular design facilitates installation, disassembly, and subsequent maintenance. Furthermore, it can be configured with PLC automatic control, variable frequency speed regulation, online monitoring, and remote control systems according to customer needs, achieving more intelligent production management. For high-wear, high-temperature, and special industry applications, various customized solutions are available, including wear-resistant, corrosion-resistant, explosion-proof, and food-grade options, to meet the long-term stable operation requirements of different industrial sectors.

What are the applications of an Industrial Bucket Elevator System?

The Industrial Bucket Elevator System is widely used in industries such as cement, building materials, mining, metallurgy, power, chemicals, food processing, feed, new energy, and environmental recycling. It is suitable for the vertical lifting of most bulk materials, including powders (such as cement, fly ash, and mineral powder), granules (such as plastic granules, fertilizers, grains, and sugar), and small lumps (such as limestone, coal, and iron ore). In the food industry, it can be used for wheat, rice, starch, coffee powder, and salt. Custom optimizations can be made for highly abrasive, high-temperature, or poorly flowing materials. This system can be integrated with screw conveyors, belt conveyors, vibrating feeders, and packaging and storage equipment to form automated production lines, efficiently completing vertical conveying within limited space, improving production efficiency and reducing labor costs.

What are the optional configurations for the Industrial Bucket Elevator System?

To meet the diverse production process requirements of different customers, the Industrial Bucket Elevator System supports a variety of customized configurations. Options include a 304 or 316L stainless steel body, wear-resistant liners, food-grade hoppers, explosion-proof motors, frequency converters, automatic lubrication devices, belt misalignment detection devices, speed monitoring devices, material level detection systems, and PLC intelligent control systems, depending on the materials being conveyed and the operating environment. Furthermore, the lifting height, hopper capacity, drive type, discharge method, and maintenance platform can be customized according to on-site installation conditions, ensuring the entire conveying system better meets the customer's actual production needs and improves equipment operating efficiency and service life.

Industrial Bucket Elevator System Customer Case

A large cement production company introduced our customized Industrial Bucket Elevator System to improve clinker conveying efficiency and upgrade its production line to automation. Based on on-site process requirements, the equipment adopts an NE plate chain structure with a lifting height of 32 meters and a conveying capacity of 250 m³/h. It is equipped with a PLC automatic control system, a variable frequency speed control system, an automatic tensioning device, and a speed monitoring device, achieving integrated operation with the entire production line. After the equipment was put into use, it not only operated continuously and stably, increasing conveying efficiency by approximately 35%, but also significantly reduced dust leakage and equipment maintenance costs, providing the customer with an energy-saving, efficient, and safe automated material conveying solution.

How to Choose the Right Industrial Bucket Elevator System?

When selecting an Industrial Bucket Elevator System, the type of material, particle size, moisture content, bulk density, abrasiveness, and conveying temperature should be comprehensively considered. Simultaneously, a comprehensive evaluation should be conducted based on the actual lifting height, conveying capacity, installation space, and automation control requirements. For common powdery and granular materials, belt-driven bucket elevators are the preferred choice; for high-temperature, high-abrasion, or large-piece materials, chain-type structures are recommended to achieve higher load-bearing capacity and longer service life. If applied to the food, chemical, or new energy industries, food-grade, explosion-proof, or corrosion-resistant configurations should be selected according to industry standards. Professional equipment manufacturers typically provide customized selection solutions based on the customer's process flow, ensuring optimal conveying performance and minimum operating costs during actual operation.

Industrial Bucket Elevator System FAQ

What materials can an Industrial Bucket Elevator System transport?

It is suitable for powders, granules, small lumps, and some abrasive bulk materials, including cement, limestone, coal, mineral powder, grain, coffee powder, plastic granules, and new energy materials. Specific designs can be customized based on material characteristics.

What is the maximum lifting height of an Industrial Bucket Elevator System?

Standard equipment typically lifts up to 50 meters. For special operating conditions, non-standard designs with higher lifting heights can be created based on the production site.

Can the conveying capacity of an Industrial Bucket Elevator System be customized?

Yes, the conveying capacity typically ranges from 5 to 800 m³/h and can be optimized according to customer capacity requirements, material density, and production processes.

Can an Industrial Bucket Elevator System be used in the food industry?

Yes. For the food processing industry, we can provide 304 or 316L food-grade stainless steel, featuring a sealed structure that meets food hygiene requirements and an easy-to-clean design to effectively prevent material contamination.

Does the Industrial Bucket Elevator System support automated control?

Yes. The equipment can be configured with a PLC control system, touch screen interface, variable frequency speed control, remote monitoring, fault alarm, and production line linkage control according to customer needs, achieving more intelligent and efficient automated operation.

Why Choose DaHan Industrial Bucket Elevator System?

DaHan Industrial Bucket Elevator System manufacturer focuses on the research, design, manufacturing, and export of bulk material conveying equipment, providing efficient and reliable vertical conveying solutions for industries such as mining, cement, chemical, grain, food, new energy, and building materials. We can provide customized designs based on material characteristics, conveying capacity, lifting height, and site conditions to meet the automated conveying needs of different production lines. Our factory is equipped with advanced processing equipment and a comprehensive quality inspection system, strictly controlling everything from raw material procurement and precision machining to complete machine assembly and factory testing to ensure stable equipment operation and long service life. We support a variety of configurations, including carbon steel, 304/316L stainless steel, explosion-proof, corrosion-resistant, and food-grade materials. We also provide solution design, equipment manufacturing, installation and commissioning, and after-sales service to create safe, efficient, and energy-saving industrial upgrading solutions for global customers.
