Food Grade Bucket Elevator for Starch

What is a Food Grade Bucket Elevator for Starch?

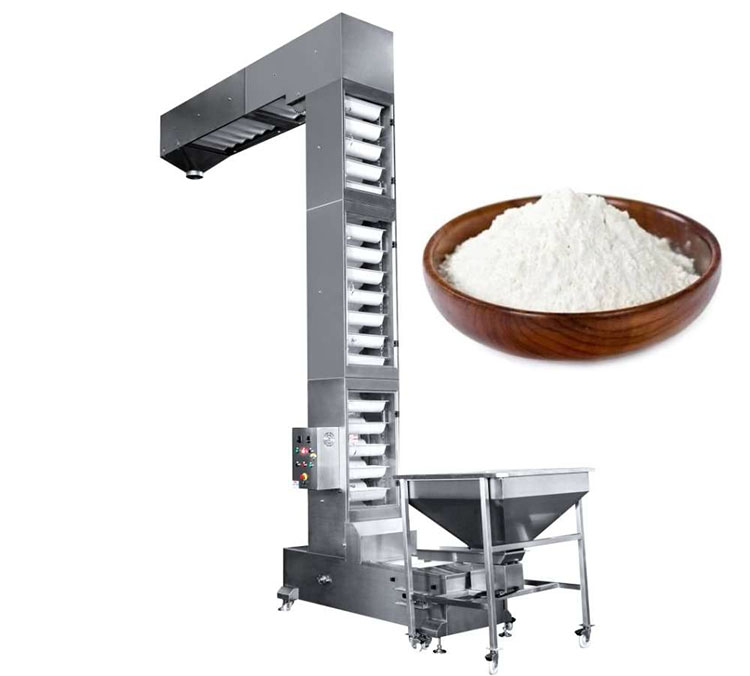

A Food Grade Bucket Elevator for Starch is used for the vertical conveying of various types of starch materials. It is made of food-grade 304 or 316L stainless steel, and all parts in contact with the material meet food hygiene standards. It features closed conveying, low breakage, low residue, dust prevention, and stable operation. Addressing the characteristics of fine starch powder, which is prone to dust generation and moisture absorption, the machine employs a fully enclosed design to effectively reduce dust leakage and prevent external impurities from entering, ensuring material hygiene and safety. It is equipped with food-grade PP hoppers or 304 stainless steel hoppers, minimizing damage to the starch during lifting and maximizing conveying efficiency. It is suitable for continuous automated production. Its lifting height can be customized from 2-40 meters, and its conveying capacity can reach 3-100 m³/h. It can be integrated with screw conveyors, vibrating screens, mixers, packaging machines, and other equipment to form a complete automated starch production line.

Why is a Food Grade Bucket Elevator needed for starch conveying?

Starch is an ultrafine powder food ingredient, characterized by its fine particles, susceptibility to dust, and tendency to absorb moisture and clump. During transport, if the equipment is poorly sealed or its materials do not meet food standards, problems such as dust leakage, material residue, and moisture contamination can easily occur, affecting product quality and food safety. Ordinary carbon steel bucket elevators may also rust after prolonged use, posing a risk of starch contamination, making them unsuitable for the food industry.

The Food Grade Bucket Elevator for Starch is constructed of 304 or 316L stainless steel, with all material contact parts meeting food hygiene standards. Equipped with food-grade PP or stainless steel hoppers, it ensures that materials are not contaminated during transport. The equipment features a fully enclosed structure, effectively reducing dust leakage and maintaining a clean production environment. Its smooth inner walls prevent material adhesion, making cleaning and maintenance easier and effectively reducing the risk of cross-contamination. Furthermore, the equipment operates stably, capable of continuous 24-hour operation, meeting the high-efficiency, safe, and hygienic transport requirements of industries such as starch processing, food production, pharmaceuticals, and packaging. It is an indispensable conveying equipment in modern automated production lines.

How does the Food Grade Bucket Elevator for Starch work?

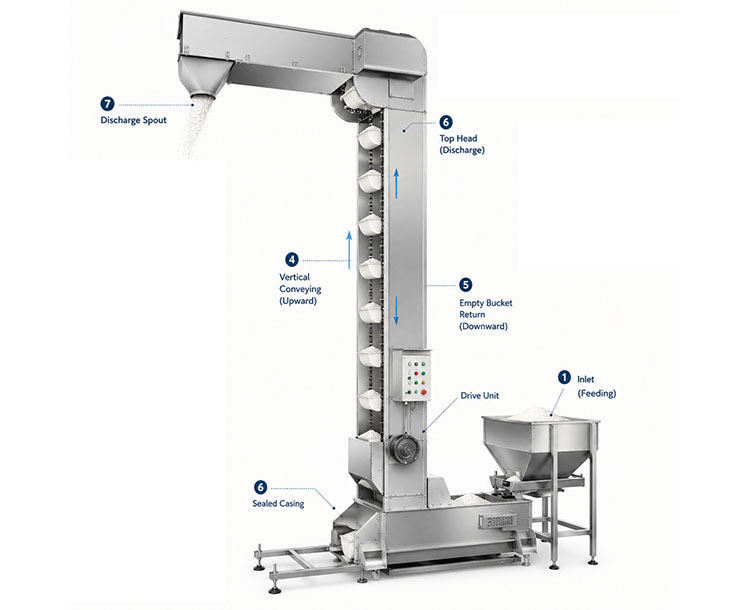

The Food Grade Bucket Elevator for Starch mainly consists of an inlet, hopper, traction chain (or belt), drive unit, casing, and unloading device. During operation, starch enters the hopper through the bottom inlet. Driven by the chain or belt, the hopper moves upwards along the enclosed casing. Upon reaching the head of the machine, centrifugal force or gravity smoothly discharges the starch into downstream equipment, such as a vibrating screen, mixer, or packaging machine. The empty hopper then returns to the bottom for reloading, achieving continuous cyclic conveying. The entire conveying process operates in a closed system, effectively reducing dust and material loss.

Food Grade Bucket Elevator for Starch Technical Parameters

Model	ZD-160	ZD-250	ZD-330	ZD-400	ZD-500	ZD-530	ZD-650	ZD-800
Capacity(m3/h)	2.9-4.8	4.6-15.7	6.0-10.0	15.2-25.2	25.4-42.3	20-33.4	32.9-54.9	40.6-67.6

bucket volume	1.8L	3.6L	6.5L
bucket material	pp	ss304	ABS
body material	mild steel	stainless steel	---
NO.S of discharge port	single	muti-discharge port	---
output	4-6m3/h	6.5-8m3/h	5.5-12m3/h
voltage(v)	220v/240v/as you need	380v/415v/440v/as you need	as you need
speed	adjustable
conveying capacity	3-10m3/h

What are the advantages of the Food Grade Bucket Elevator for Starch?

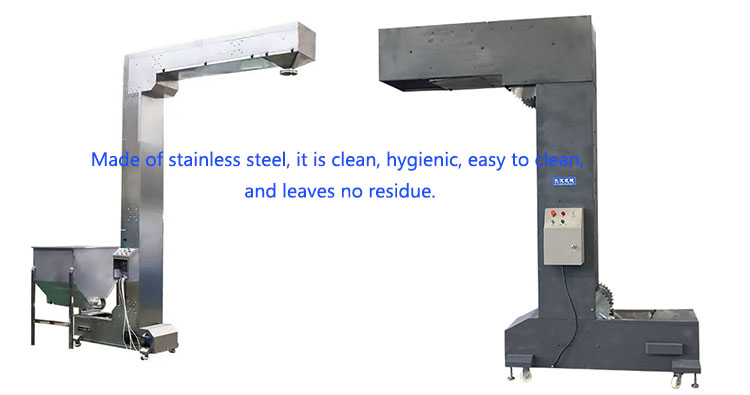

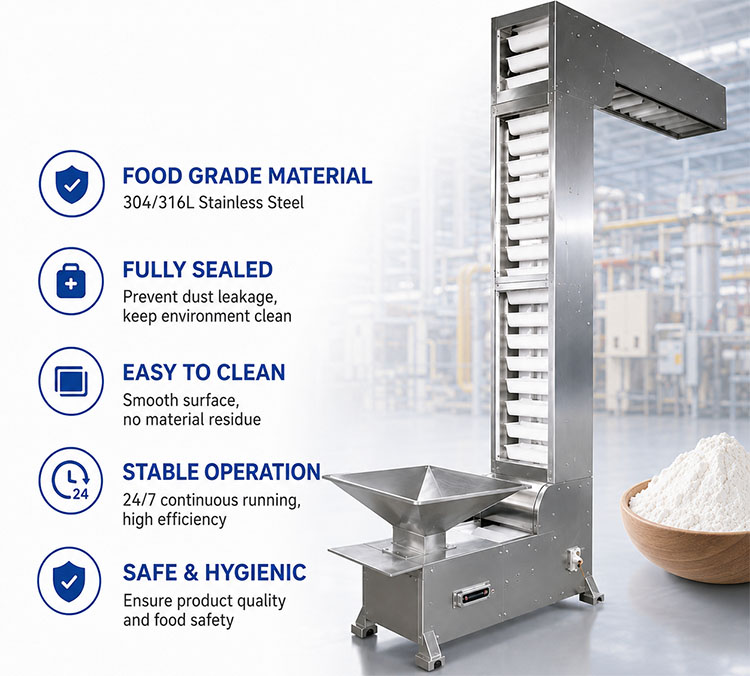

The entire Food Grade Bucket Elevator for Starch is made of 304 or 316L food-grade stainless steel, which is corrosion-resistant, rust-free, and meets the hygiene requirements of the food processing industry. Its sealed casing design effectively prevents dust leakage and external contamination during starch conveying, improving the cleanliness of the production environment. The hopper operates at a low and stable speed, minimizing damage to starch granules and powder, maintaining product quality. Its simple internal structure eliminates unsanitary corners and allows for quick disassembly, facilitating daily maintenance and cleaning. Depending on the model, the conveying capacity can reach 3-100 m³/h, meeting the needs of different production scales. It can be connected to packaging machines, vibrating screens, screw conveyors, and batching systems to achieve automated continuous production. The hopper material can be selected according to the material properties, and can be configured with food-grade PP hoppers, 304 stainless steel hoppers, or 316L stainless steel hoppers to meet different process requirements. Customization of lifting height, inlet/outlet positions, conveying capacity, and control systems is also available based on customer site conditions.

What are the applications of the Food Grade Bucket Elevator for Starch?

Food-grade starch bucket elevators are widely used in corn starch production lines, cassava starch processing plants, potato starch processing plants, food additive production, condiment processing, baking factories, flour mills, sugar powder production lines, pharmaceutical industry, health food production, and automated packaging production lines. They can be used for various food-grade and industrial-grade starches, including corn starch, cassava starch, potato starch, wheat starch, rice starch, sweet potato starch, modified cassava starch, food starch, native starch, and industrial starch. Whether granular or powdered, they can achieve stable and efficient vertical conveying.

What are the optional configurations for the Food Grade Bucket Elevator for Starch?

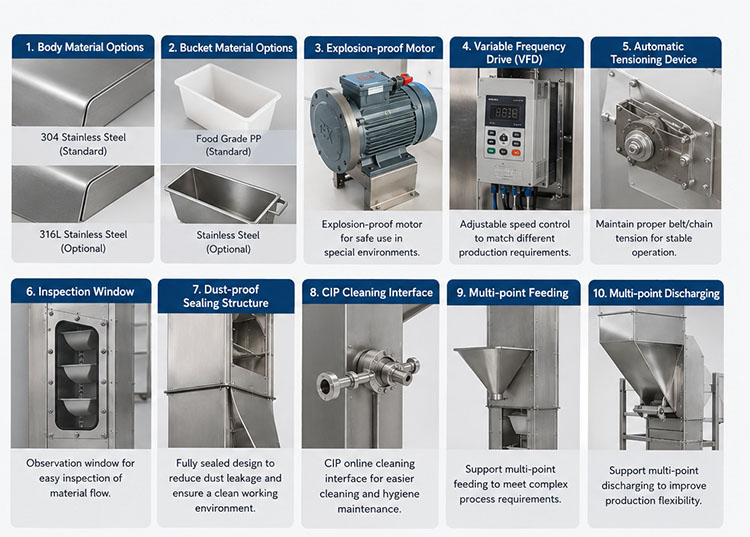

To meet the production needs of different food processing enterprises, the Food Grade Bucket Elevator for Starch offers a variety of customized configurations. The machine body can be made of 304 or 316L food-grade stainless steel, and the bucket can be made of food-grade PP or stainless steel to meet different material and hygiene standards. It can be equipped with explosion-proof motors, variable frequency speed control systems, automatic tensioning devices, inspection windows, dustproof sealing structures, and CIP online cleaning interfaces. It also supports customized designs such as multi-point feeding and multi-point unloading, and can be customized according to different production capacities, process flows, and installation environments. This ensures stable operation, cleanliness, and convenient maintenance, better meeting the automated conveying needs of modern food processing production lines.

Food Grade Bucket Elevator for Starch Customer Case

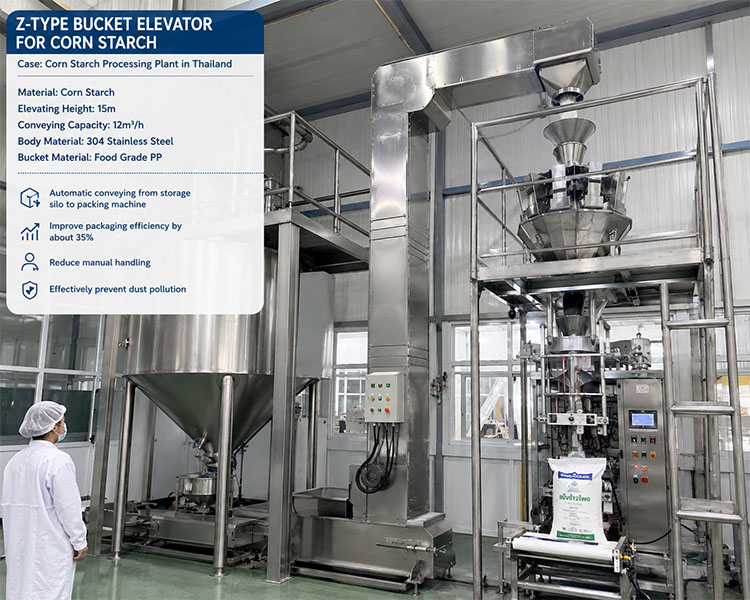

At a corn starch processing plant in Thailand, the customer purchased a Food Grade Bucket Elevator for Starch to improve packaging efficiency. The equipment features a 304 stainless steel body and food-grade PP hoppers, a lifting height of 15 meters, and a conveying capacity of 12 m³/h. After being put into use, it achieved automated conveying of corn starch from the storage silo to the packaging machine, reducing manual handling, increasing production efficiency by approximately 35%, and effectively avoiding dust pollution.

Food Grade Bucket Elevator for Starch Manufacturer

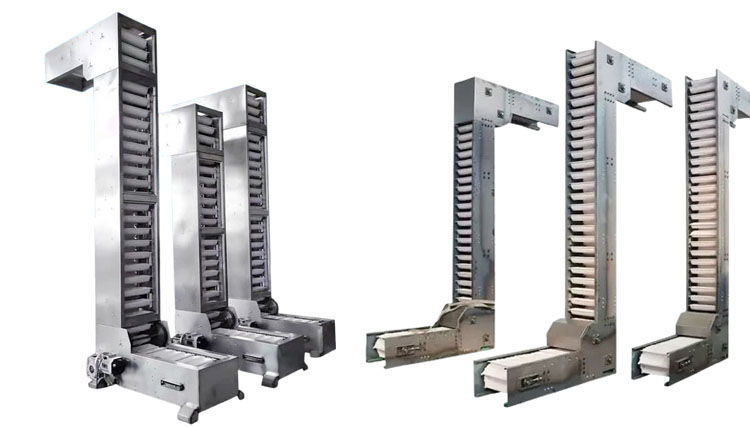

Dahan Food Grade Bucket Elevator for Starch Manufacturer boasts 18 years of experience in producing food-grade bucket elevators. Our products include Z-type bucket elevators, vertical bucket elevators, and belt-type bucket elevators for starch lifting. All are made of 304/316L food-grade materials and manufactured in strict accordance with food industry hygiene standards. We support OEM/ODM customization and provide complete automated conveying solutions. We can provide professional customized starch lifting solutions based on your starch type, conveying capacity, lifting height, and production process, helping you achieve efficient, safe, and stable automated conveying.
