Z type bucket elevator price

Monday September-08 2025  17:09:53

Z type bucket elevator price ranges from $500 to $4,000 USD, which is more expensive than a typical bucket elevator. This is because it combines horizontal conveying with vertical lifting. The inlet and outlet are positioned in a "Z" shape. Its lifting height can reach 30 meters, and its lifting capacity is 3-10m³ per hour. Its specific price depends on the manufacturer, material (carbon steel or stainless steel), model specifications, lifting height, lifting capacity, and special customization. is a detailed introduction:

Z-type bucket elevator price chart for different models (for reference only)

Model	Conveying Capacity (m³/h)	Hopper Capacity (L)	Lifting Height (m)	Motor Power (kW)	Applicable Scenarios	Reference Price Range (USD)
ZD-160	2.9~4.8	1.8	2-12	2.2-4	Grain, chemical powder	$500 - $1,500
ZD-330	6.0-10.0	4	2-15	3-5.5	Particle material, food processing	$600 - $2,000
ZD-500	25-42.3	6	3-20	5.5-7.5	Ore, construction aggregate	$800-$3,000
ZD-800	40.6-67.6	10	5-40	7.5-11	Large particle materials, high production volume	$1,000-$4,000+

What factors influence the price of a Z-type bucket elevator?

Z-type bucket elevator prices primarily depend on the materials they lift and their application scenarios. Consequently, the materials, lifting height, and lifting capacity vary accordingly. Some elevators may even require customization.

Many people ask what impact does the material have on Z type barrel elevator price?

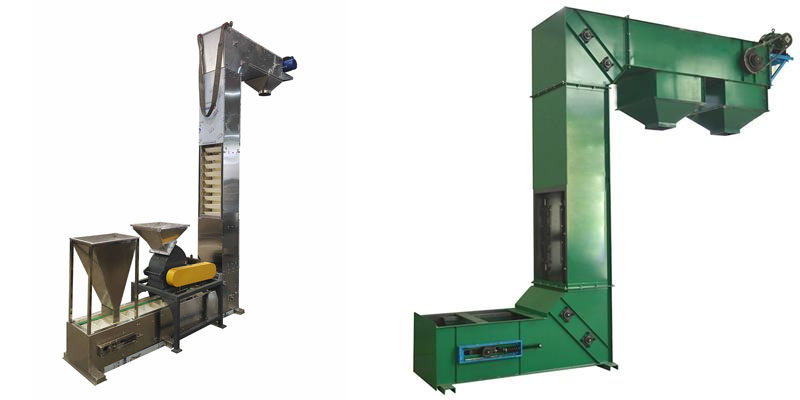

Dahan Z-type bucket elevators are mainly made of carbon steel and stainless steel. Carbon steel is relatively cheap and is generally used to lift ordinary materials. Stainless steel is often used in the food and pharmaceutical industries due to its corrosion resistance, high temperature resistance, and rust resistance. Its price is usually $100-$300 higher than carbon steel. There are also many options for hopper materials, including food-grade ABS, PP plastic, stainless steel, and carbon steel hoppers. Different hopper materials can also cause price fluctuations.

The impact of lift height and lift capacity on Z-type bucket elevator prices

Lift height and lift capacity are key parameters for Z-type bucket elevators. Small units with a lift capacity of 3-8 m³/h cost approximately $500-$1,500; medium-sized units with a lift capacity of 10-25 m³/h cost between $8,000-$3,000; and large units with a lift capacity of 35 m³/h or more can cost upwards of $1,000-$5,000. Costs increase by approximately 5%-8% for every additional meter of lift height. For example, a 10-meter lift costs 25%-40% more than the same model with a 5-meter lift.

Customization requirements can incur additional costs.

These include special inlet designs (single or multiple feeding points), outlet configurations (single or multiple unloading points), drive unit position adjustment, and various safety devices (such as torque protectors, chain break protectors, and backstops).

Z-type bucket elevators are relatively expensive, and a comprehensive consideration must be made based on material properties and site requirements. However, as a source manufacturer with 15 years of R&D and production experience, our Z-type bucket elevators from Dahan offer excellent value for money. We have our own engineers and manufacture everything from parts to the entire machine in-house, so don't worry about the high price. Please contact our online customer service for details.
