Vertical Bucket Elevator Price

Saturday August-23 2025  15:41:01

Vertical bucket elevator prices generally range from $420 to $15,000, with special models and custom solutions potentially costing upwards of $20,000. Vertical bucket elevators can be used to vertically lift a variety of bulk materials, including powders, granules, and lumps. Different material properties dictate the model and configuration used. Factors influencing the price include lift height, conveying capacity, material requirements (carbon steel, stainless steel, or food-grade), drive power, hopper type, and whether a custom design is required.

Vertical Bucket Elevator Price Table for Different Models

Model	Feed size MM	Bucket			Height m	Lifting capacity (m³/h)	Weight	Price
		Distance mm	Width MM	Capacity L
TB250	90	200	250	3	5-40	25	According to the specific vertical bucket elevator order total drawing verification to determine	$500-$3,450
TB315	100	200	315	6		46		$600-$4,800
TB400	110	250	400	12		75		$820-$5,500
TB500	130	320	500	25		95		$1,300 - $6,200
TB630	150	400	630	50		148		$1,700 - $8,100

What are the prices of different types of vertical bucket elevators?

There are many types of vertical bucket elevators, the most common being belt, chain, and Z-type. Prices vary depending on the model. Below is a detailed introduction:

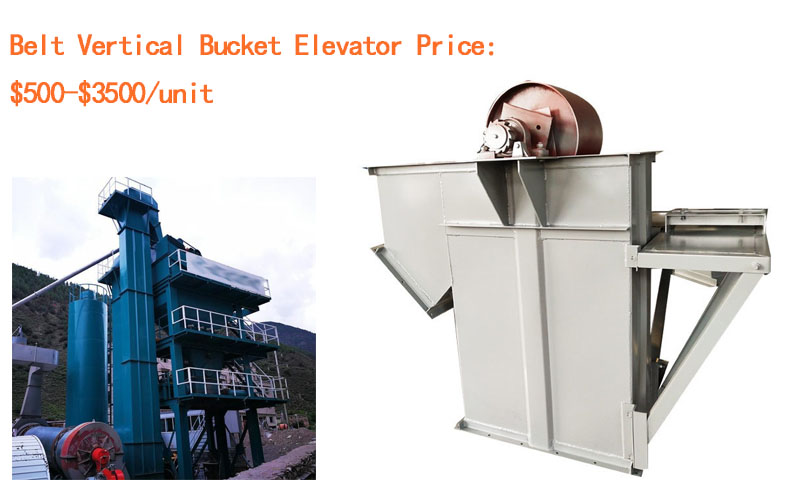

Belt Vertical Bucket Elevator (TD Type)

Belt Vertical Bucket Elevator Price: $500-$3500 per unit. This cost-effective and popular economical model uses a rubber belt as a traction element. It is suitable for conveying light, non-abrasive materials. It operates smoothly, has low noise, high conveying capacity, and is easy to maintain.

Applicable Materials: Powders, granules, and small lumps, such as grain, cement, and fertilizer.

Lifting Height: Up to 40 meters, Capacity: 4-238 m³/h (depending on model and hopper configuration).

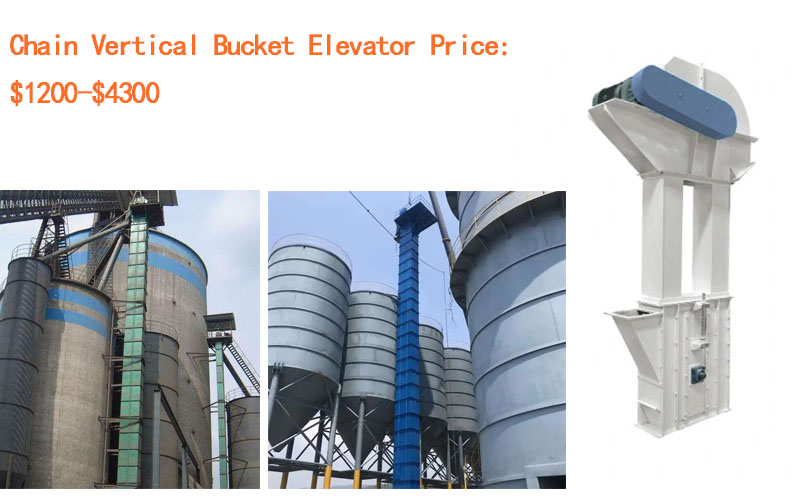

Chain Vertical Bucket Elevator (TH Type)

Chain Vertical Bucket Elevator Price: $1200-$4300. This device uses a high-strength round-link chain as a traction element and is suitable for conveying highly abrasive materials and high-temperature materials. It offers excellent wear resistance, high strength, high-temperature resistance, easy maintenance, and a long service life.

Applicable Materials: Powders, granules, and small, non-abrasive and low-abrasive materials, such as coal, cement, gravel, sand, and fertilizer.

Lifting Height: Up to 60 meters, Capacity: 15-185 m³/h.

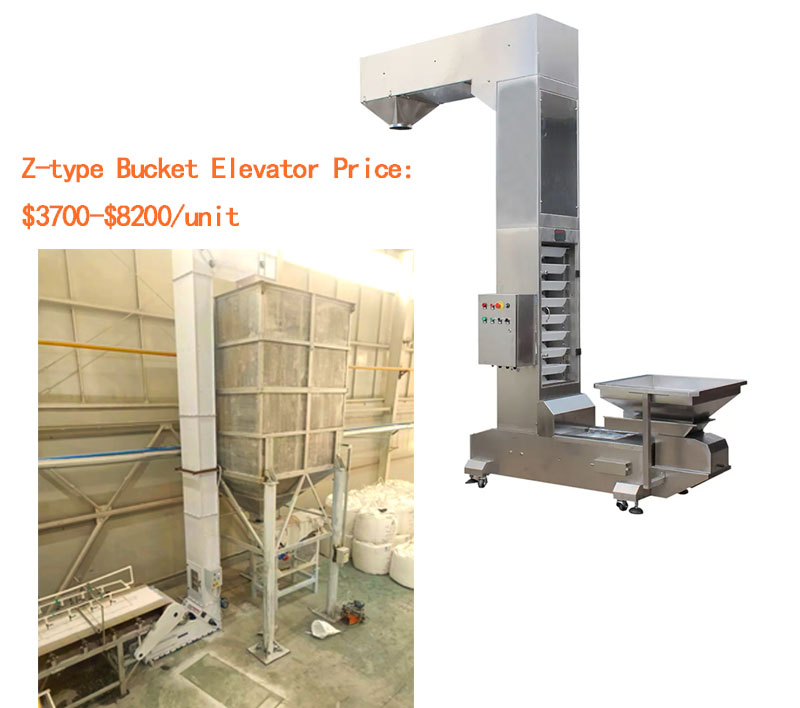

Z-Type Bucket Elevator

Z-type Bucket Elevator Price: $3700-$8200/unit. This uniquely designed elevator combines horizontal conveying and vertical lifting, enabling multiple loading and unloading points. It features a compact structure, flexible layout, multi-point loading and unloading, low material damage, and excellent sealing.

Applicable Materials: Various powders and granules, primarily non-sticky materials.

Lifting Height: Generally under 30 meters, Capacity: Typically 3-40 tons/hour (approximately 2-30 m³/h, depending on material density)

When selecting a vertical bucket elevator, it's important to consider the material being hoisted and site requirements to find the right equipment at an affordable price. Belt-type elevators offer an economical solution suitable for most common materials; chain-type elevators are better suited to demanding conditions and heavy materials; and Z-type elevators, with their flexible layout and versatility, excel in applications with specialized process requirements.
