Quartz sand bucket elevator price
Wednesday August-13 2025 14:36:20
Quartz sand bucket elevators are used for vertical conveying of quartz sand in industries such as mining, building materials, and chemicals. Their price typically ranges from $450 to $15,000. Factors influencing price include equipment model (plate chain, belt, chain, Z-type), lifting height (3-60 meters), conveying capacity (5-800 m³/h), material (carbon steel, 304/316 stainless steel), and customization options (explosion-proof, sealed, multi-point unloading, etc.). The following provides a detailed analysis of Quartz sand bucket elevator prices, allowing you to select the most cost-effective elevator solution based on quartz sand characteristics (particle size, moisture content, and abrasiveness).
What are the prices of different types of Quartz sand bucket elevators?

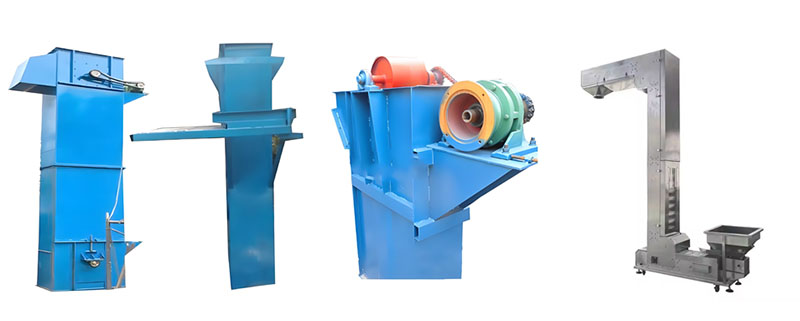

Quartz sand bucket elevators are primarily available in four types: plate chain, belt, chain, and Z-type. Different types of bucket elevators are suitable for conveying quartz sand with different characteristics, which translates to different prices.
| Models | Price Range | Applicable Quartz Sand Types | Maximum Height | Advantages | Limitations |
| Plate Chain (NE) | $2,500-$15,000 | High abrasiveness, high-temperature materials | 40 meters | Durable, good sealing | High initial cost |
| Belt-type (TD/TH) | $1,300-$8,000 | Fine particles, low abrasiveness | 30 meters | Low price, stable operation | Not resistant to high temperatures (limited to below 80°C) and the belt is prone to wear, requiring frequent replacement |
| Chain Chain | $3,000-$10,000 | Large, wet materials | 35 meters | High chain strength, but heavy weight increases energy consumption by 15-20% | High energy consumption |
| Z-Type | $5,000-$18,000 | Requires steering | 25 meters | Multi-directional conveying design, suitable for applications where space is limited and the conveying direction needs to be changed, offering flexible layout | Complex structure |
What factors influence the price of a quartz sand bucket elevator?
Quartz sand bucket elevator prices vary significantly. Basic models, such as small belt elevators (e.g., the NE15), start at around $400, while large-capacity, high-specification stainless steel plate chain elevators (e.g., the NE50) can cost over $15,000. Pricing is primarily determined by conveying capacity, lifting height, drive power, and material selection:
Conveying capacity: Hourly throughput ranges from 5 to 200 m³, with prices typically increasing by 15-20% for every 10 m³/h increase in capacity. For example, a 30 m³/h NE50 model costs approximately $2,500, while a 60 m³/h model in the same series can cost $4,500.
Lifting height: Standard equipment covers a range of 10 to 40 meters, with costs increasing by approximately $800 to $1,200 for every 5-meter increase in height. Customized equipment exceeding 40 meters can double in price. Drive Power: From a small 0.37kW motor to a 132kW industrial-grade drive system, the price increases by approximately $300-$500 for each power increase (e.g., from 3kW to 5.5kW).
Material Options: Basic carbon steel models are 30-50% cheaper than stainless steel models. For example, with the same specifications, a 304 stainless steel hopper costs approximately $1,000-$2,000 more than the carbon steel version, while 316L stainless steel, due to its greater corrosion resistance, costs an additional 20%.
Customization requirements: Quartz sand bucket elevators can be specially customized according to the material properties and usage scenarios, including explosion-proof, multi-point unloading/loading, sealing, etc., and can be customized according to user needs. Since it is customized, the Quartz sand bucket elevator price needs to be calculated according to actual conditions.
Explosion-proof Design: Adding an explosion-proof motor and control system increases the price by 30-40%. A specific explosion-proof NE50 model is priced at $4,800 (standard version $3,200).

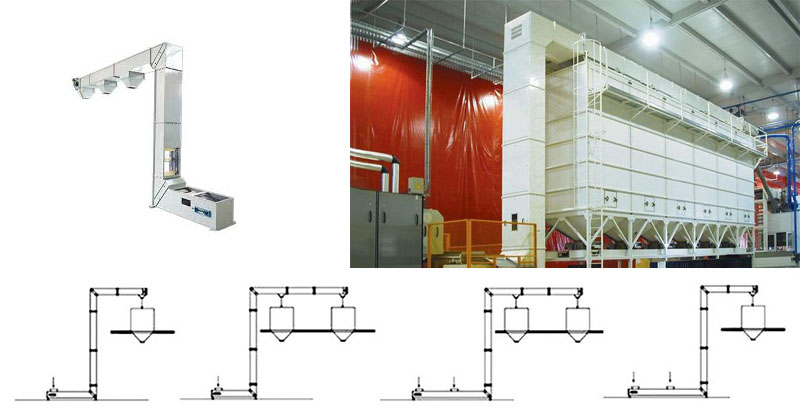

Multi-point unloading: For each additional discharge port, the cost of Quartz sand bucket elevator price increases by $800-$1,500. Z-type elevators are often equipped with 3-4 discharge points.
Special seals: Airtight design for ultra-fine quartz sand powder (<100 mesh), with an additional cost of 15-20%.
When selecting a Quartz sand bucket elevator, we must carefully consider the sand properties, lifting height, lifting capacity, application scenario, and whether special design is required. This will help you choose the most cost-effective bucket elevator. Xinxiang Dahan Quartz sand bucket elevators are a leading manufacturer, offering a comprehensive range of models, a two-year warranty, and competitive pricing. For more information, please email us at sale@xxdahan.com
