Positive Discharge Bucket Elevator
Positive Discharge Bucket Elevator (also known as a forced discharge bucket elevator) is engineered for handling sticky, cohesive, or fragile bulk materials. Utilizing a specialized mechanical tripping or delayed-dump mechanism, it ensures 100% complete bucket evacuation with zero material residue at lower operating speeds.
- ✓ Complete Discharge: Zero residue for sticky/wet powders.
- ✓ Gentle Handling: Low-speed operation prevents particle degradation.
- ✓ Heavy-Duty Build: Available in carbon steel and stainless steel 304/316.
What is a Positive Discharge Bucket Elevator?
A Positive Discharge Bucket Elevator is a specialized industrial lifting machine designed to elevate bulk materials vertically. Unlike standard centrifugal models that rely on high-speed rotation to throw materials out, this system uses a mechanical tripping device or a delayed-dump mechanism to forcefully invert each bucket over the discharge chute.This targeted mechanical action guarantees complete gravity-assisted emptying, making it the industry standard for difficult-to-handle materials that tend to cling or pack inside standard buckets.
Core Working Principle: How It Ensures Complete Discharge
The operational mechanism of a positive discharge bucket elevator is engineered to eliminate material retention through precise mechanical design:
Low-Speed Operation: Operating at a significantly reduced speed compared to centrifugal elevators, preventing premature or uncontrolled material release.

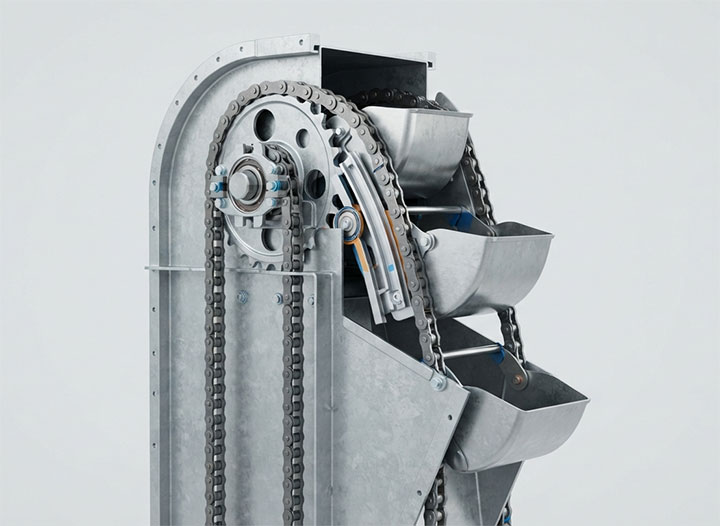

Mechanical Tripping / Snubbing: As the dual-chain buckets reach the head section, auxiliary sprockets or track guides nudge or tilt the trailing edge of each bucket.
Controlled Inversion: This forced tilt creates a prolonged, steep dumping angle over the discharge chute, ensuring sticky or packed materials slide out completely by gravity.
Key Technical Specifications & Customization Options
Our positive discharge bucket elevators are custom-built to match your exact plant requirements, capacity needs, and material characteristics.
| Technical Parameter | Specification Range |
|---|---|
| Handling Capacity | 5 m³/h to 150 m³/h |
| Chain Speed | Low speed (0.5 - 0.7 m/s) to ensure gentle handling |
| Casing Material | Carbon Steel, Stainless Steel (304 / 316L) |

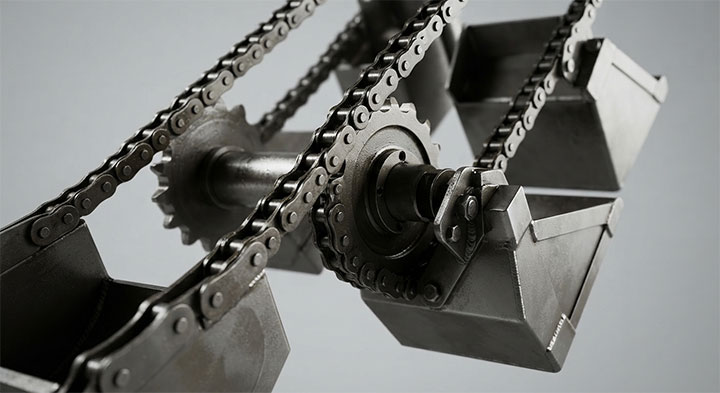

| Bucket Types | Pressed steel or welded heavy-duty buckets with positive dump mechanism |
| Drive System | High-efficiency motor with gear reducer and backstop device |
Customization Available: We offer tailor-made inlet/outlet dimensions, dust-tight sealed casings, and food-grade or explosion-proof configurations upon request.

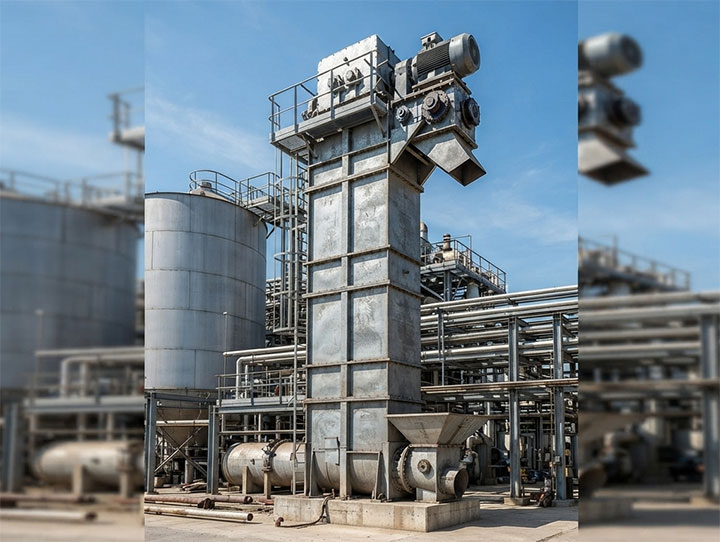

Advantages of Our Industrial Bucket Elevators
Designed for heavy-duty industrial environments, our positive discharge bucket elevators offer distinct operational advantages:
Selection Guide: Positive Discharge vs. Centrifugal vs. Continuous Discharge
Choosing the right bucket elevator depends on your material characteristics and throughput needs. Here is how positive discharge compares to other standard types:
| Elevator Type | Operating Speed | Discharge Method | Best Suited Materials |
|---|---|---|---|
| Positive Discharge | Low (0.5 - 0.7 m/s) | Mechanical tilt / complete inversion | Sticky, cohesive, wet, or fragile bulk materials |
| Centrifugal Discharge | High (1.0 - 1.2 m/s) | High-speed centrifugal throw | Free-flowing, dry grains, pellets, and sand |
| Continuous Discharge | Medium (0.6 - 0.8 m/s) | Chuted guidance over preceding bucket | Fragile, abrasive, or aerated materials |
Materials Best Suited for Positive Discharge Systems

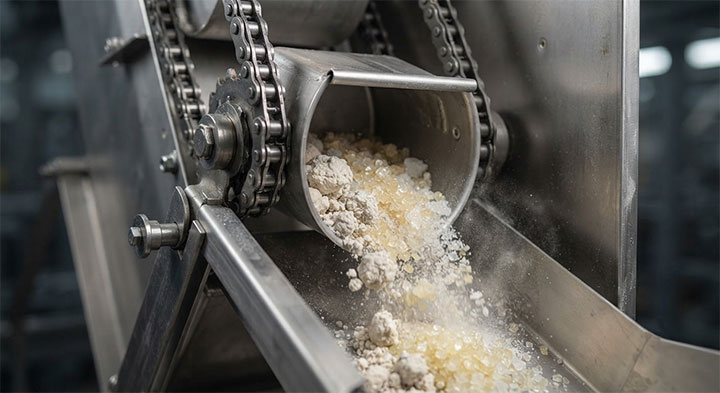

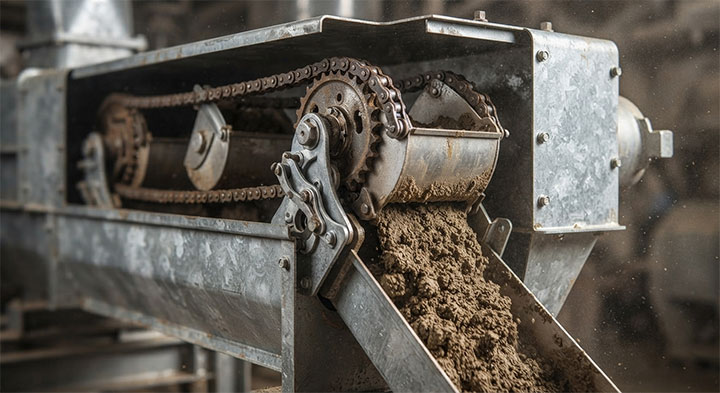

Due to its unique mechanical dumping action and low-speed operation, this elevator excels at handling challenging bulk materials that cause issues in standard machines:
Troubleshooting Common Issues in Bucket Elevator Systems
To ensure maximum uptime and longevity for your positive discharge bucket elevator, here are quick diagnostic solutions for common operational challenges:

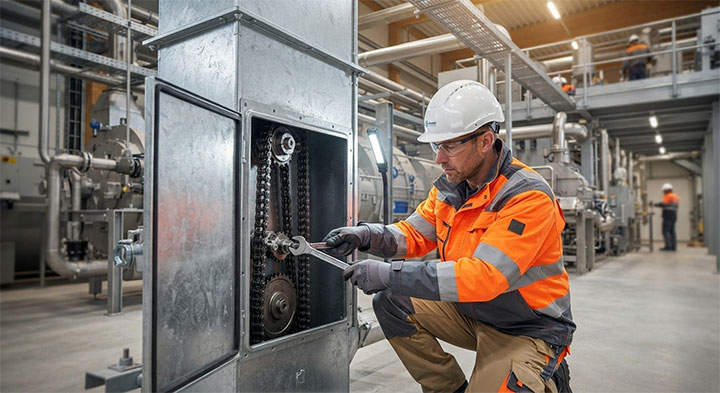

- Chain Slack or Elongation: Regularly inspect tensioners. Adjust the take-up mechanism promptly if the dual chains experience slack to prevent slipping on the sprockets.
- Incomplete Discharge: Verify that the mechanical tripping cams or auxiliary guides are properly aligned so that buckets achieve their full inversion angle over the discharge chute.
- Abnormal Noise or Vibration: Check for material buildup on the head/boot pulleys or foreign objects trapped in the casing, and ensure proper bearing lubrication.
Why Choose Dahan Machine for Your Material Handling Needs?
As an established industrial machinery manufacturer, Dahan Machine delivers reliable, custom-engineered equipment designed to optimize your plant operations:
Frequently Asked Questions (FAQ) About Positive Discharge Elevators
Can this elevator handle food-grade or sanitary materials?
Yes. We can customize the elevator with Stainless Steel 304 or 316L contact parts and food-grade buckets to meet strict hygiene and sanitary standards.
How is it different from a centrifugal bucket elevator?
A centrifugal elevator runs at high speeds to throw materials out, which is ideal for dry grains. A positive discharge elevator runs much slower and mechanically tips the buckets, making it perfect for sticky or fragile materials that won't easily leave standard buckets.
Is the maintenance complicated?
Not at all. Routine maintenance primarily involves checking chain tension, ensuring the mechanical tripping tracks are clear of debris, and regularly lubricating the bearings and drive system.
Ready to Optimize Your Material Handling?
Contact Dahan Machinery today for a custom-engineered Positive Discharge Bucket Elevator tailored to your exact plant specifications and capacity needs.
