Organic fertilizer conveying bucket elevator price
Thursday August-07 2025 14:46:53
Organic fertilizer conveying bucket elevator price ranges from $400.00 to $7,700 per unit. Basic carbon steel models (such as the TD series) start at approximately $400 per unit. Medium-capacity units (such as the TD30x13) have a base price of $1,200 for a 3-meter height, with an additional $150 per meter in height. Corrosion-resistant stainless steel models (such as the Z-type 304 fully sealed chain bucket) are even more expensive, at over $3,600. This significant price difference is primarily due to key parameters such as model, material, and functionality. Below is a detailed introduction:
Organic fertilizer conveying bucket elevator price chart (for reference only)
| Model | Conveying Capacity (m³/h) | Bucket Capacity (L) | Lifting Height (m) | Motor Power (kW) | Price Range | Remarks |
| TD160 | 9-27 | 0.49-1.9 | ≤40 | 1.1-3 | $350-$550 | Suitable for powdered and granular materials |
| TD250 | 20-59 | 1.12-4.6 | ≤40 | 2.2-5.5 | $500-$800 | Deep or shallow hopper options |
| TD315 | 28-67 | 1.95-5.8 | ≤40 | 3-7.5 | $700-$1,100 | Stainless steel optional, good sealing |
| TD400 | 40-110 | 3.1-9.4 | ≤40 | 5.5-11 | $1,000-$1,500 | Large conveying capacity, suitable for bulk materials |
| TD500 | 63-154 | 4.84-14.9 | ≤40 | 7.5-15 | $1,500-$2,200 | High-strength belt, wear-resistant design |
| TD630 | 142-238 | 14-23.5 | ≤40 | 15-22 | $2,200-$3,000 | Suitable for high-yield organic fertilizer production lines |
What factors influence the price of an organic fertilizer conveying bucket elevator?
Model Types

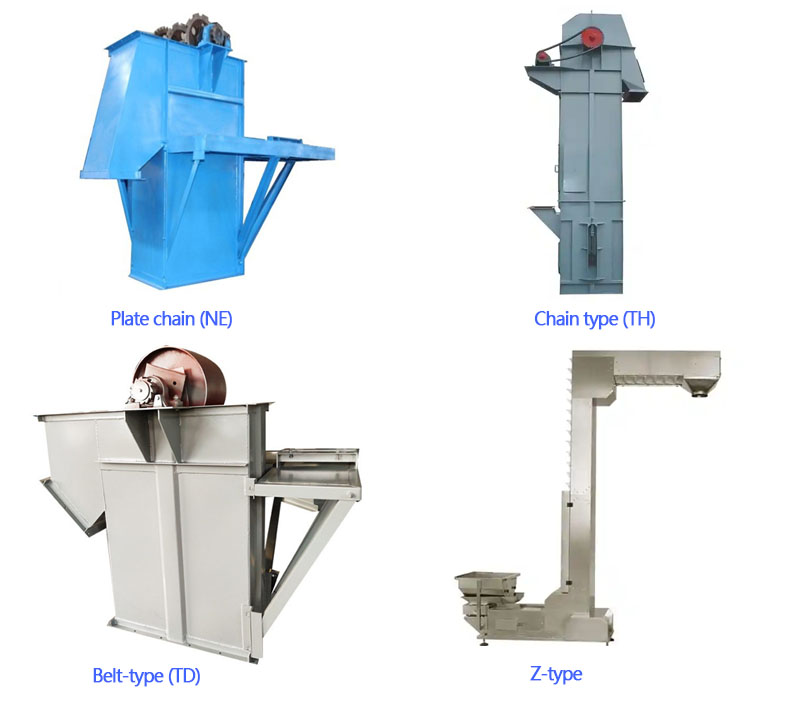

There are four types of organic fertilizer conveying bucket elevators: plate chain, ring chain, belt, and Z-type. Each type has different capacities for lifting organic fertilizer and conveying capacity, and accordingly, their prices vary.
| Type | Applicable organic fertilizer forms | Maximum lifting height | Temperature resistance | Price range (USD) |
| Plate chain type (NE) | Block, granular | 40m | ≤250℃ | $3,900–$13,900 |
| Chain Type (TH) | Powder, Granules | 50m | ≤250℃ | $2,500–$7,000 |
| Belt Type (TD) | Powder, Light Granules | 40m | ≤120℃ | $2,400–$5,600 |
| Z-Type | Dry Granules, Powder | 100m | ≤60℃ | $2,500-$5,600 |
Material Cost

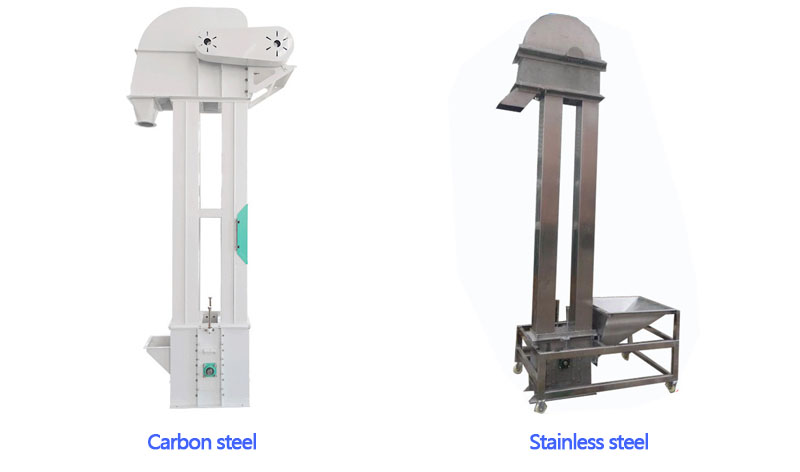

Organic fertilizer conveying bucket elevators are made of either carbon steel or stainless steel. Carbon steel models range in price from $400 to $1,200 and are ideal for conveying general organic fertilizers and those in low-corrosive environments. 304 stainless steel offers strong corrosion resistance and is suitable for conveying high-humidity and salt-laden organic fertilizers. They cost between $800 and $2,000. Stainless steel models are $130 to $500 more expensive than carbon steel models, but offer a 3-5 year longer lifespan and lower long-term maintenance costs.
Functional Configurations and Customization
Organic Fertilizer Conveying Bucket Customized features of an elevator can increase the price. Common value-added features include: a sealed and dustproof design. A fully enclosed enclosure is 20% more expensive than an open structure, preventing organic fertilizer dust from escaping. A multi-point unloading system, typically a Z- or C-shaped elevator, supports horizontal and vertical multi-directional conveying and is 30% more expensive than a standard vertical elevator. Furthermore, if additional features are required, such as automatic chain tensioning, a chain break sensor, or variable frequency speed regulation, the price per feature will increase by $50-$280.
The price of an organic fertilizer conveying bucket elevator is determined by a variety of factors. Choosing a source manufacturer is essential to ensure the best value for money. Dahan Organic Fertilizer Conveying Bucket Elevator is a manufacturer specializing in the development and production of bucket elevators. For specific pricing, please email sale@xxdahan.com.
