Feed Bucket Elevator Price

Friday August-15 2025  15:48:23

Feed bucket elevators are used for vertical feed conveying in feed processing. Prices range from $500 to $14,000. Below is a detailed explanation of feed bucket elevator prices based on model, material, height, and customization options:

What are the different types of Feed Bucket Elevator prices?

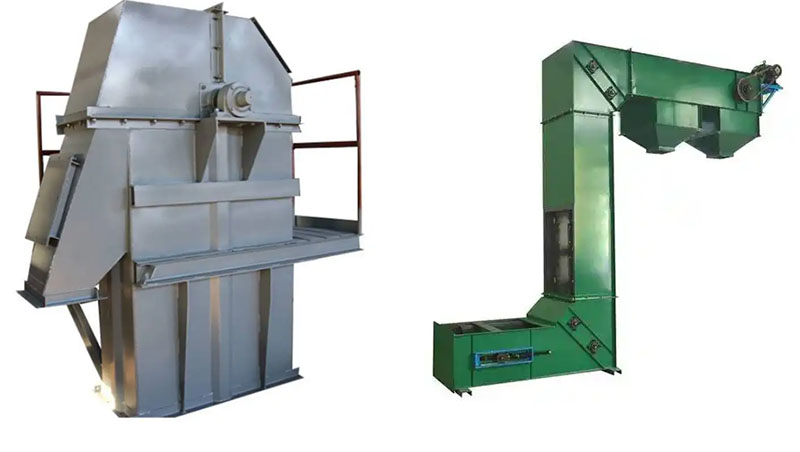

Feed bucket elevators mainly come in two types: vertical and Z-type. Their prices vary depending on the type of feed they convey and their application scenarios:

Vertical feed bucket elevators cost between $500 and $5,600. They utilize a linear vertical conveyor system, saving space. They are primarily used for powdered feed (such as cornmeal), pellets (such as extruded pellets), and small, lumpy materials (crushed materials). They feature a simple structure, low energy consumption, and a processing capacity of 1 to 100 tons/hour. Models include the TD series ($700-$4,000), the NE series plate chain ($800-$10,000), and the TH series ring chain ($1,000-$5,000).

The Z-type Feed Bucket Elevator costs between $2,500 and $7,000. Its unique horizontal-vertical-horizontal conveying path makes it ideal for feed processing applications with limited space or requiring multiple unloading points. It offers excellent sealing and a material breakage rate of less than 3%. It is commonly used for conveying mixed feeds (such as premixes) with a fines content of less than 25% and fragile pellets (such as pet food).

Type	Model/Specifications	Basic Price (RMB)	Cost per Additional Meter	Processing Capacity	Applicable Feed Type	Typical Application Scenarios
Vertical Bucket	TD20×13	5,380-6,320	$50-$100	1-2 tons/hour	Pellet feed, grain	Small feed processing line
	TD30×13	8,160-9,800	$60-$110	8-12 tons/hour	Compound feed, corn kernels	Medium-sized feed mill owner
	NE50	36,000	Custom Quote	>40 tons/hour	Bulk Raw Material Warehousing	Port Granary/Large Feed Mill
Z-Type Hopper	Basic Model (Hopper ≤ 3L)	3,600-14,000	$75-$100	3-6m³/hour	Fishmeal, Additive Premixes	Premixing Plant Feeding
	Mid-range Model (5-8L Hopper)	13,500-24,000	$90-$150	15-25m³/hour	Extruded Feed, Pet Food	Aquatic Feed Production Line
	High-end Customized Model	24,000+	$150+	Up to 40 tons/hour	Heat-sensitive Feed, Vitamin Additives	Additive Section in Large Feed Mills



What factors influence the price of a feed bucket elevator?

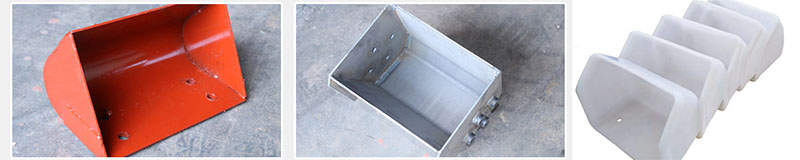

Material Cost: The basic carbon steel model starts at $500. Stainless steel, due to its corrosion resistance (suitable for high-humidity feed environments), increases the price by $140–$210. Food-grade PP hoppers (for fragile feed) carry a premium of approximately 15%.

Lifting Height and Power: The lifting height can reach 60 meters. The price increases by $125–$170 for each additional meter of height (e.g., the TD30×13 model). Lengths exceeding 30 meters require custom reinforced chains and support structures, resulting in a 30% price increase.

Customized Products: Multi-point discharge valves: Each additional discharge port on a Z-type elevator increases the cost by $200–$500. Flammable dust environments (such as feed additive delivery) require explosion-proof configurations, increasing the price by 10%–20%.

The price of Feed Bucket Elevator needs to be considered from many aspects such as material properties, application scenarios, lifting height, lifting volume, etc. Our factory is a source manufacturer and can provide customized material, scenario, and product transportation solutions according to user needs. You can consult through email or online customer service.
