Bucket Elevator for Limestone Price

Monday August-04 2025 15:38:02

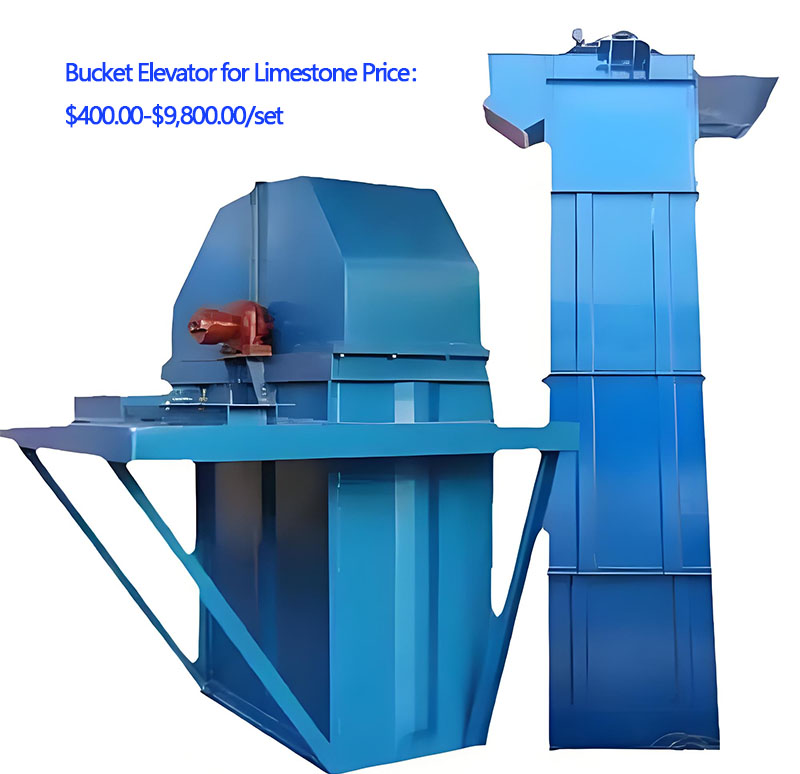

Bucket Elevator for Limestone Price: between $400.00 and $9,800.00 per unit. It is a bucket elevator used to vertically lift limestone. The specific price depends on factors such as equipment type, lifting height, conveying capacity and material. Below, we analyze the factors that influence the price of a limestone bucket elevator to help you make the most cost-effective purchasing decision.

Bucket Elevator for Limestone Price Table (For Reference Only)

Model	Lifting capacity (m³/h)	Applicable limestone block size (mm)	Max. height (m)	Power (kW)	Chain type	Price range (USD/unit)
NE15	15	≤65	30	1.5-3.0	Single-row	$500–$4,500
NE30	32	≤90	35	3.0-5.5	Single-row	$700–$6,800
NE50	60	≤90	40	5.5-11	Double-row	$850–$9,400
NE100	110	≤130	45	11-18.5	Double-row	$1,000–$10,000
NE150	170	≤130	50	18.5-30	Double-row	$1,100–$12,000
NE200	210	≤170	50	22-37	Double-row	$1,300–$15,000
NE300	320	≤170	50	30-55	Double-row	$1,700–$19,000
NE400	360	≤205	50	37-75	Double-row	$2,100–$21,000
NE500	470	≤240	60	45-90	Double-row	$3,000–$26,000
NE600	600	≤240	60	55-110	Double-row	$4,000–$30,000
NE800	800	≤270	60	75-132	Double-row	$5,000–$380,000

What factors affect the Bucket Elevator for Limestone Price?

Equipment Classification

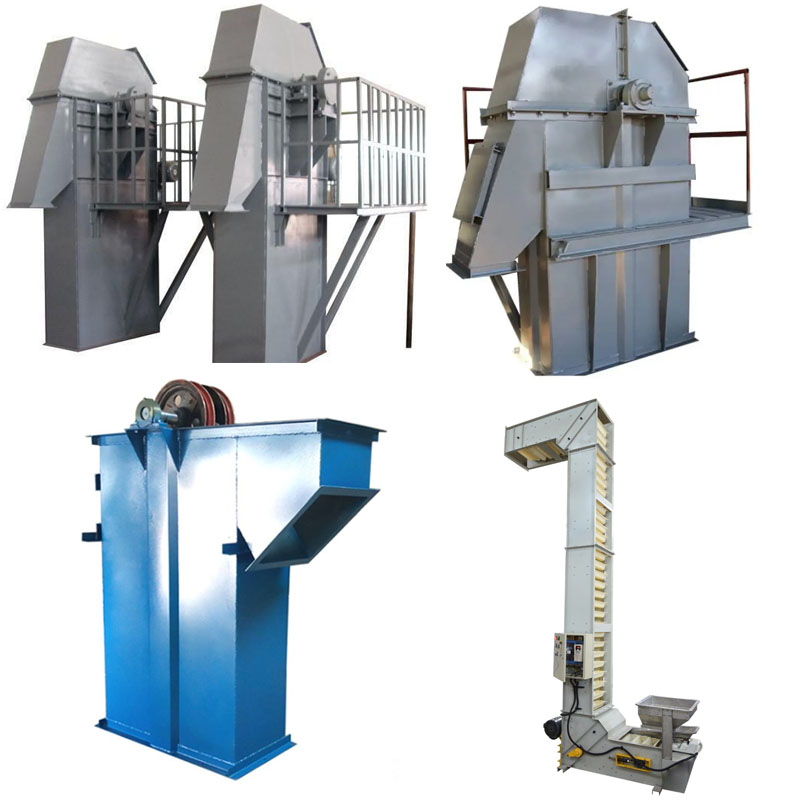

Common models for conveying limestone include plate chain, ring chain, belt, and Z-type. The following is a detailed analysis:

Plate Chain Bucket Elevator for Limestone (NE Series): Optimized for handling medium- and large-scale limestone, it utilizes alloy steel plate chains, which are wear-resistant and high-temperature resistant (250°C). Prices range from $750.00 to $9,500.00 per unit. For example, the basic NE15 (15 m³/h) costs approximately $700.00 per unit, while the NE200 (210 m³/h) costs $1,800.00. Advantages include energy efficiency (power consumption is 30% lower than ring chain) and a long lifespan (chain lasts over 5 years), making it suitable for highly abrasive applications such as cement and mining operations. Chain-type bucket elevators for limestone: priced at a lower $450.00–$7,700.00 per unit, but the chain is prone to wear, resulting in a 15% higher maintenance cost. They are only recommended for small or intermittent operations and are suitable for small to medium-sized pieces of material.

Belt-type bucket elevators for limestone: Suitable for powdered limestone below 70°C, but not for highly abrasive limestone. Prices range from $550.00–$6,500.00 per unit, but the belt is prone to tearing and requires frequent replacement.

Z-type bucket elevators for limestone: A multi-horizontal-vertical design saves space but is complex, making them suitable for specialized applications and the most expensive (custom pricing available).

Lifting Height and Capacity

Lifting height can reach 60 meters: The price increases by approximately 10%–20% for every 10-meter increase. For example, the price of an NE50 at a 20-meter height may be $14,000–$20,000. Transport Capacity: The NE800 (800 m³/h) is 3-4 times more expensive than the NE15 (15 m³/h).

Material Options (Carbon Steel vs. Stainless Steel)

Standard carbon steel: occupies 80% of the market, meets operating conditions below 250°C, and offers the best value for money.

Stainless steel (304/316L): Highly corrosion-resistant, double the price, and suitable for high-humidity or chemical environments.

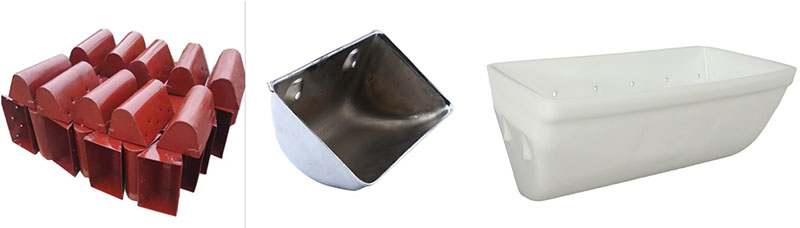

Hopper Options: PP plastic hopper (anti-stick) incurs an 8% surcharge, alloy steel hopper (wear-resistant) incurs a 15% surcharge.

Customization Requirements

Non-standard designs (e.g., hopper volume > 200L, chain pitch > 450mm) incur a 25% or higher price increase.

Sealing: Fully enclosed designs are 20%-30% more expensive than open designs, but reduce dust pollution.

Customized drive power (e.g., increasing from 7.5kW to 18.5kW) incurs an additional cost of over $400.00.

Bucket Elevator for Limestone Price are influenced by model, material, height, handling capacity, and customization. The NE series plate chain offers the best price-performance ratio and is suitable for most applications. Clarifying your specific requirements (height, handling capacity, and corrosion resistance) when selecting an elevator can help avoid paying for unnecessary features.
