Aggregate Conveying Bucket Elevator Manufacturer
Wednesday October-29 2025 14:41:54
When choosing an Aggregate Conveying Bucket Elevator Manufacturer, different manufacturers offer different models with varying specifications, materials, and lifting heights, all designed to lift sand, gravel, crushed stone, and other bulk aggregates. Some manufacturers may only produce carbon steel or stainless steel models, and the lifting capacity of each unit also varies, ranging from 10 tons/hour, 50 tons/hour, 100 tons/hour, and even 200 tons/hour. Therefore, choosing a manufacturer that can provide customized products is crucial. Our Aggregate Conveying Bucket Elevators are available in stainless steel and carbon steel, and other materials can also be customized to meet user needs, with lifting capacities ranging from 5 to 500 cubic meters per hour. In addition to standard Aggregate Conveying Bucket Elevators, we also offer custom designs for different aggregates, such as liquid spray, high-temperature resistant, and corrosion-resistant models.
How to choose the appropriate model according to Aggregate Conveying Bucket Elevator Manufacturer?
To select the appropriate Aggregate Conveying Bucket Elevator model from the manufacturer, it's essential to first determine the characteristics of the aggregate being lifted, such as granular or lumpy form, temperature requirements, hardness, and particle size. This directly determines the material of the equipment. The hourly lifting capacity is crucial for selecting the equipment size and motor power. Furthermore, different types of aggregates typically require different machine models and configurations.

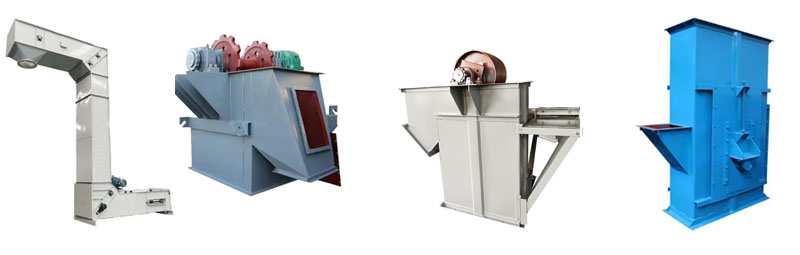

Z-type Bucket Elevator: Employing a horizontal, vertical, and zigzag conveying trajectory, it can be used for powdery, granular (e.g., [missing information]), and small blocky aggregates with a particle size ≤30mm, such as cement, sand, and limestone fragments. The enclosed shell and flexible conveying method reduce aggregate breakage. Lifting heights can reach 30 meters, and horizontal lengths can reach 40 meters, making it suitable for applications with limited space.
Chain bucket elevators: Utilizing plate/chain-driven hoppers to lift aggregates, these elevators offer high strength and are suitable for conveying large and heavy aggregates. They are suitable for conveying aggregates ≤165mm, such as ore and coal, powdered materials like fly ash and cement, and abrasive slag. They can also convey high-temperature materials with temperatures ≤250°C, such as cement clinker. They can reach a lifting height of 60 meters and a lifting capacity of 15-800 m³/h.
Belt bucket elevators: Utilizing a hopper mounted on a belt, these elevators are suitable for lightweight, small- to medium-sized aggregate production. They can vertically convey granular, powdered, and non-abrasive aggregates, with material temperatures not exceeding 60°C. They can reach a lifting height of 40 meters and a lifting capacity of 3-180 m³/h.
Continuous bucket elevator: It is a kind of equipment that realizes continuous conveying of aggregates through densely arranged buckets and high chain speed. It is suitable for high-yield and high-frequency conveying. It can be used to lift powdery, granular and small-block aggregates. It can also handle highly abrasive aggregates such as ore. The lifting height is 30-60 meters.
What are the advantages of being an aggregate conveying bucket elevator manufacturer?
Different aggregate conveying bucket elevator manufacturers produce elevators with varying advantages. Aggregate conveying bucket elevators can lift powder, granules, lumps, and abrasive aggregates. Some manufacturers only produce belt-type aggregate bucket elevators for powder and granular aggregates, while others produce plate chain-type aggregate elevators for lifting abrasive, lumpy, and heavy-duty aggregates. However, all are made of high-strength manganese steel, which is pressure-resistant and wear-resistant, ensuring stable operation even under high-load conditions. They offer high conveying efficiency, with a maximum conveying capacity of up to 830 cubic meters per hour. The lifting height can be customized according to the application scenario, with a maximum lifting height of up to 60 meters to meet the needs of different production lines.
Aggregate Conveying Bucket Elevator Manufacturer Customization Services
Aggregate Conveying Bucket Elevator Manufacturer can customize bucket elevator dimensions, hopper capacity, materials, and structure based on aggregate characteristics such as strength, hardness, gradation, fluidity, abrasiveness, and process requirements. Standard models can also be customized with features such as mobile models for flexible, site-independent operation, explosion-proof models for flammable and explosive industries or dusty aggregates, dust removal models for dust purification during hoisting, and high-temperature resistant models for aggregate temperatures exceeding 300°C. These solutions offer solutions for various aggregate hoisting applications.
Quality assurance and certification
We, the Aggregate Conveying Bucket Elevator Manufacturer, strictly adhere to the ISO9001:2008 quality management system, and our products have obtained CE certification, ensuring the quality and safety of our equipment. Our factory boasts a professional technical team specializing in bucket elevators. We manufacture everything from parts to complete machines ourselves, and continuously engage in product research and development and technological innovation, committed to providing our customers with high-quality products and services.

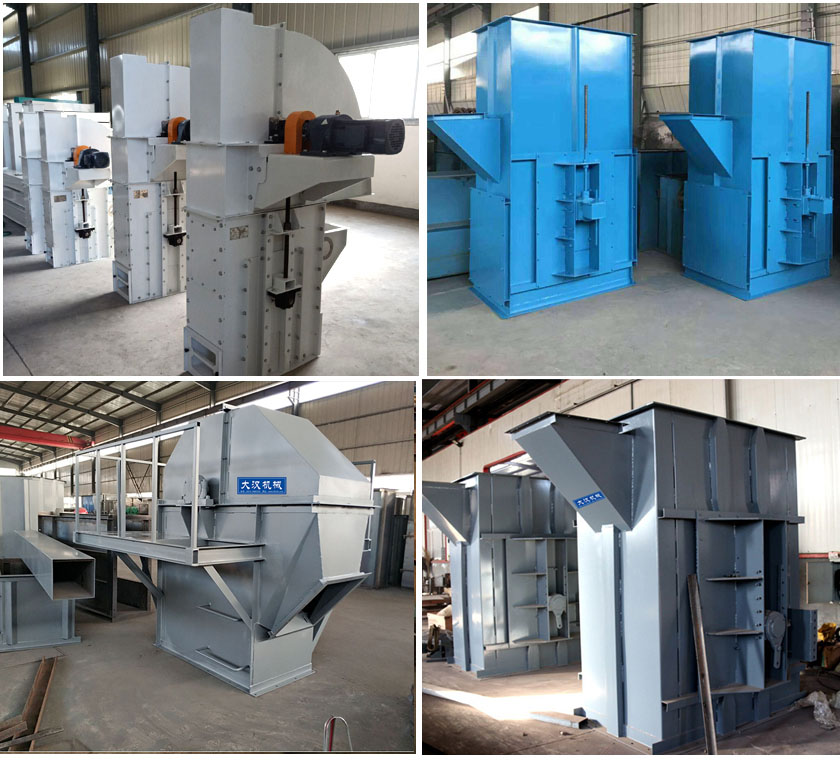

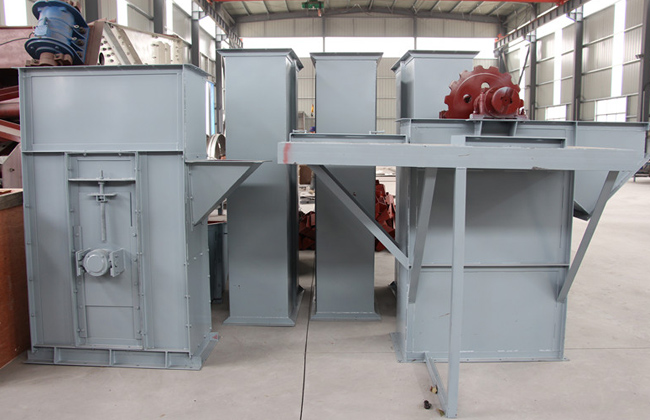

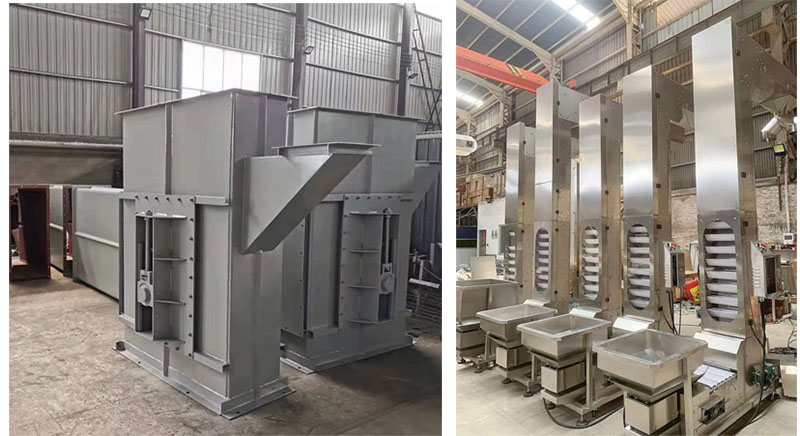

Dahan Aggregate Conveying Bucket Elevator Manufacturer offers a variety of bucket elevators, including the TH series, TD series, TB series, NE series, and Z-type. With 15 years of experience in manufacturing and R&D, we can meet the diverse needs of powder, granular, and lump aggregate elevators, lifting aggregates vertically from low to high levels with optional heights ranging from 5 to 60 meters. Our products are available in carbon steel and stainless steel, with both open and closed versions for structured powders. Prices start as low as $400.
